HD LiDAR Data

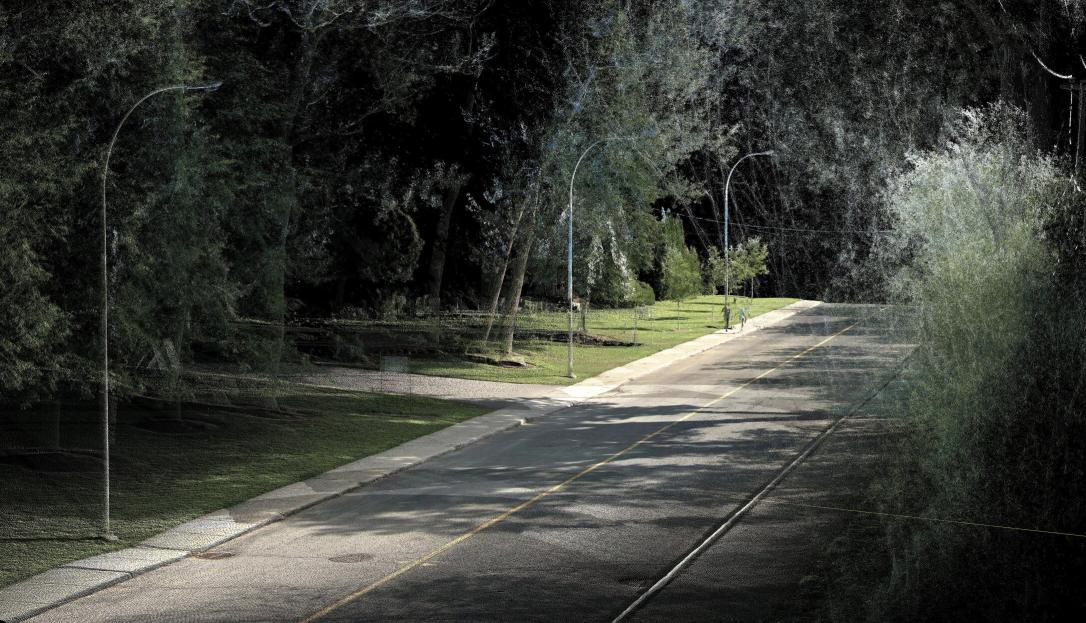

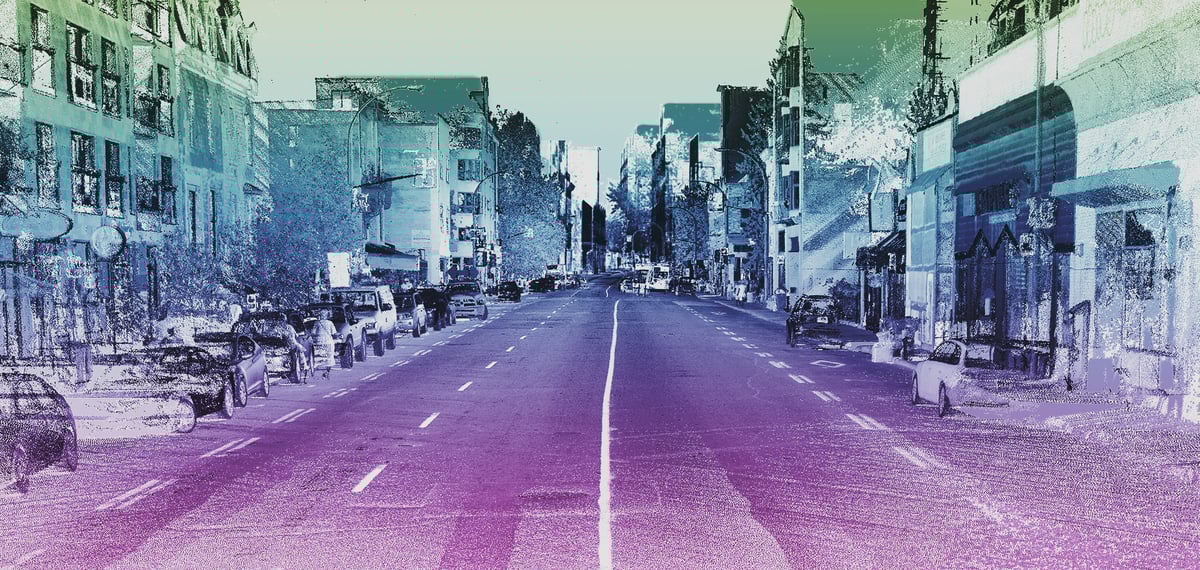

High resolution 3D LiDAR point cloud illustrating the territory

By default, Jakarto's HD LiDAR data is available in Jakartowns web application to visualize the territory, take measurements and assist you in carrying out an inventory. Check out our coverage map. Subscribe!

Jakarto's HD LiDAR data is also available as raw data so that you can use it in your GIS / CAD (GIS / CAD / BIM) software.

Default file formats: .las and .laz,

Upon request and under certain conditions (costs, deadlines, your specifications), Jakarto can generate 3D tiles in .pnts format (3D Tiles).

Specifications when ordering:

Geographic coverage (a city, a boulevard, a district, any zone specified by you, etc.);

Organization (cutting and delivery) of files according to:

Linear, depending on the road network;
Square tiles, the approach of territorial coverage by equivalent tile.
Specific polygons, personalized territorial coverage approach, by section.

The resolution:

Full resolution: all points captured;
By sampling: lightened point density (resolution) by specifying the most representative point (low, high, middle or central point) of each cell, of a size appropriate to the needs (between 1 cm to 1 m sides, generally 10 cm);

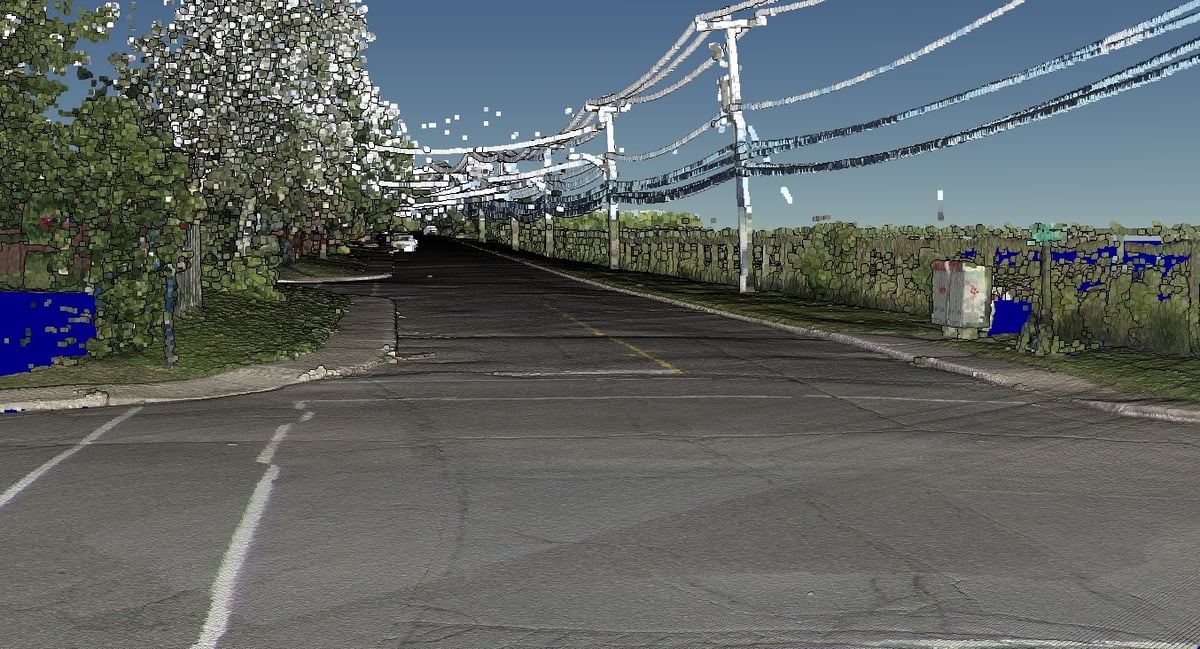

Colorization of point clouds by the projection of images collected by cameras;

Basic classification:

Ground
Aboveground

Classification on request (special projects, additional costs):

Ground

Pavement
Ground

Aboveground

Buildings
Vegetation
Urban furniture
Posts and lampposts
Road signs
Other…

Consult the coverage map to see if your territory has already been digitized!

If your geographic area is not yet in the Jakarto catalog, and is in accordance with our geographical coverage planning, the data can be produced as a priority. For an area outside of our planning, a request for production can be made after an evaluation. In this case, you can expect a production and delivery time between 5 and 10 weeks.

Technical details

Processing level: Level 1, basic (immersion data)
Requirements: None
Data format / type: LiDAR point clouds and color images
File format: .xyz and .jpg
Projection: MTM, NAD 83 (CSRS). MTM zone depending on the area collected.
Average precision:
- 1 cm (less than 20 meters from the measuring instrument) to 10 cm for observations over 20 meters)
Disk space required to store 1 km traveled: approximately 1 Gb / kilometer

Vocations

Immersion
Visualisation
Measurements and manual inventory in 3D software (such as, Jakartowns)

Request a quote

What products are offered by Jakarto?

Jakarto offers the following products:

Raw data files for use in your software and systems
Access to online data through Jakartowns

What do I need to know about my project before I purchase Jakarto data?

To obtain Jakarto data, you simply need to specify your geographical coverage, the type of data you require, and a method of delivery.

How can I ensure Jakarto covers my geographical location?

There are two ways to determine if our database includes your location (city, district, network, site, campus, etc.)

Consult the coverage map to see if your location is already digitized
Or contact us to request an estimate for a data collection campaign

What types of data does Jakarto offer?

Jakarto offers four types of data

3D mapping data
Complete geographic data with full inventory capabilities for 3D viewing and immersion.
2D mapping data
2D data generated from full 3D data mapping.
Inventory data in 3D
Data specific to one or more inventory categories with elements represented in 3D.
Inventory data in 2D
Data specific to one or more inventory categories with elements represented in 2D.

What data formats and delivery methods are available?

Data can be delivered in two ways:
1. Raw data files: be sure to specify the file format in which you want to receive your Jakarto data. These are delivered to you according to their size (hard drive, DVD, USB key, FTP access);
2. Software as a service (SaaS): access the data through the Jakartowns web application

Does Jakarto respond to requests for proposals or calls for tenders?

Do you have a request for proposals or a call for tenders involving digital mapping? We can help! The quality-to-price ratio of a single Jakarto capture is very competitive. Moreover, our AI capabilities provide added value to your inventory data.

What exactly is Jakartowns?

Jakartowns is Jakarto's software as a service (SaaS). The web application, which requires no installation, is used to view and explore 3D maps (such as Google Street View). It also offers powerful geolocation and measurement functions.

How are your rates calculated?

We calculate our rates based on several criteria. Here are the main ones:

The type of data requested: you can request either a digital twin for viewing and immersion or data representing inventory items;
The size of the territory covered (generally calculated in linear road kilometers);
Whether or not the data already exists in our catalog. If the data does not exist, we must assess the planning and implementation of the capture campaign, accounting for factors such as location, season, safety, etc.;
The frequency in which the data must be updated: we determine whether a single capture suffices or if update campaigns (every one, two, or three years) are required to track changes.
Lastly, the type of data access requested affects pricing. For instance, requesting simple web access via Jakartowns is generally more economical than requesting raw data files.

HD LiDAR Data

High resolution 3D LiDAR point cloud illustrating the territory

Consult the coverage map to see if your location is already digitized!
