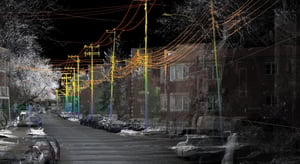

_03_3d_04_detection_5_poteaux_8 (2) (1)

Overhead Network

Modeling of the overhead electrical network.

This Jakarto data is specifically produced for the transportation and electric distribution industry. They are useful for owners, operators, inspectors, and engineers.


This inventory, with a description of the overhead electrical network, contains the 2D geolocation, classification, and typology of network components as seen from the road. This includes:

  • Poles
  • Attachments
  • Wires (and their connectivity and topology).

These inventory data are generated from Jakarto's digital twin type data already available in the Jakartowns web application. Check out our coverage map.

_03_3d_04_detection_5_poteaux_8 (2) (1)

Type of Data

This inventory data is provided as a single deliverable, which includes a bonus :


  • 2D Data: Data file (.shp) containing the geolocation of items and some attributes including the pole type.
  • Jakartowns Context URL: For each element, a hyperlink is associated and can be activated to open Jakartowns directly at the location of the element, allowing you to visualize the entire geographical context.

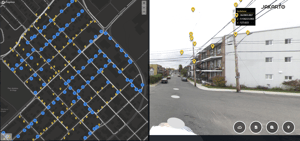

image_inventairepoteaux

Inventory Technical Details

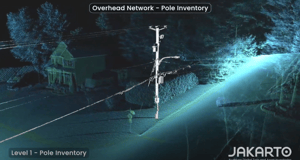

Pole Inventory

  • Pole's unique identifier
  • Pole's ground position
  • Pole's central points at a 10-centimeter interval
  • Pole's top point
  • Pole's diameter in meters
  • Pole's inclination in degrees
  • Pole's height in meters
  • Hyperlink to view the location in Jakartowns
  • Capture date
  • Last modification date of the digitized object

Network Inventory

  • Network's unique identifier
  • Network's position
  • Horizontal distance between neighboring poles in meters
  • First attachment's unique identifier, if applicable
  • Second attachment's unique identifier, if applicable
  • Hyperlink to view the location in Jakartowns
  • Capture date
  • Last modification date of the digitized object



Attachment Inventory

  • Attachement's unique identifier
  • Attachement's position
  • Unique identifier of the pole with the attachement
  • Attachement's direction perpendicular to the cable with respect to geographic North in clockwise direction in degrees
  • Hyperlink to view the location in Jakartowns
  • Capture date
  • Last modification date of the digitized object

Vegetation Encroachment on Network

  • Network's unique identifier
  • Network's position
  • Hyperlink to view the location in Jakartowns
  • First attachment's unique identifier, if applicable
  • Second attachment's unique identifier, if applicable
  • Qualification of vegetation-type point density around the network

Key information

Geographic coverage In the event that your geography is not yet in the Jakarto catalog, and according to our geographic coverage planning, the data you desire could be produced as a priority. In the case of a geography outside our planning, they could be produced on request and after evaluation.
Quality and completeness

Although every effort is made to ensure the completeness of the inventory data, it is possible that the inventories may not be 100% complete. If an object obstructs the view of the capture unit, an item behind it cannot be recorded. Therefore, items might be missing in the delivered inventories; we try to limit the proportion of such occurrences.

Jakarto_data_electrique
image_inventairepoteaux2

Jakarto in numbers

150 cities already digitized
100 000+ kilometers digitized
